RF transformers are widely used in electronic circuits for :

- Impedance matching to achieve maximum power transfer and to suppress undesired signal reflection.
- Voltage, current step-up or step-down.
- DC isolation between circuits while affording efficient AC transmission.
- Interfacing between balanced and unbalanced circuits; example: balanced amplifiers.

When signal current goes through the primary winding, it generates a magnetic field which induces a voltage across the secondary winding. Connecting a load to the secondary causes an AC current to flow in the load.

It is generally necessary to control terminating impedances of RF signal paths, especially in wide-band applications where path lengths are not negligible relative to wavelength. Wideband RF transformers are wound using twisted wires which behave as transmission lines, and the required coupling occurs along the length of these lines as well as magnetically via the core. Optimum performance is achieved when primary and secondary windings are connected to resistive terminating impedances for which the transformer is designed. Transformers having a turns ratio of 1:1, for example, are typically designed for use in a 50- or 75-ohm system.

In this application note, reference is continually made to terminating impedances which the user should provide for transformers, both for performance testing and in actual use. For the sake of consistency in the discussion, transformers with turns ratio greater than 1:1 will be described as step-up; that is, the secondary impedance is greater that the primary impedance. In actual use, however, connection can be step-up or step-down as needed.

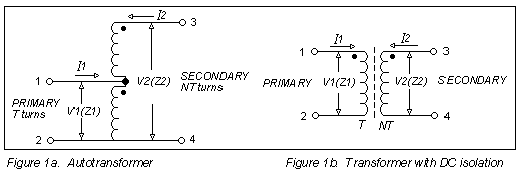

In Figure 1, three transformer winding topologies are illustrated. The one in Figure 1a is the simplest. Called an autotransformer, this design has a tapped continuous winding and no DC isolation. The transformer in Figure 1b has separate primary and secondary windings, and provides DC isolation. The RF performance of these configurations is similar, however. The relationship of voltage and current between primary and secondary windings, as well as the terminating impedances, are given by the following equations:

where N is the turns ratio.

Since

That is, the impedance ratio is the square of the turns ratio.

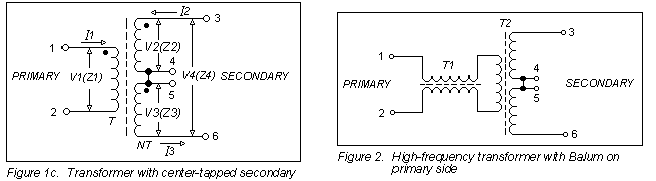

The secondary winding in Figure 1c has a center-tap, which makes the transformer useful as a
balanced signal splitter; excellent amplitude and phase balance are obtainable with well designed
RF transformers having this configuration.

In the equations for Figure 1c which follow, the turns ratio N refers to the entire secondary winding.

When the two halves of the secondary are connected to equal terminating impedances Z_{2} and Z_{3},
then

A variation on the transformer of Figure 1c, favoring high frequency performance, is shown in Figure 2. It adds a transmission-line transformer in cascade at the input, to convert an unbalanced signal to balanced at the input to the center-tapped transformer. Features of this design:

- Wide bandwidth, exceeding 1000 MHz.
- Excellent amplitude and phase balance.
- Higher return loss (lower VSWR) at the primary side.

*Insertion Loss and Frequency Bandwidth*

Insertion loss of a transformer is the fraction of input power lost when the transformer is inserted into an impedance-matched transmission system in place of an ideal (theoretically lossless) transformer having the same turns ratio. Actual insertion loss is affected by non-ideal characteristic impedance of the transformer windings, as well as winding and core losses..

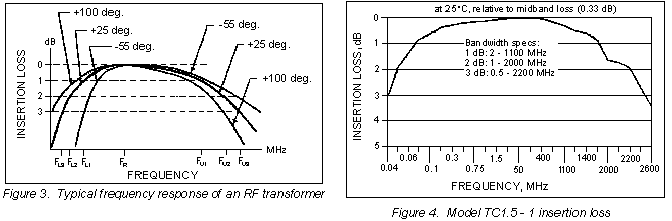

Typical insertion loss variation with frequency is illustrated in Figure 3 which shows the 1 dB, 2 dB, and 3 dB bandwidths, referenced to the midband loss as they are usually specified. Insertion loss at low frequency is affected by the parallel (magnetizing) inductance. At low temperature, low-frequency insertion loss tends to increase because of decreasing permeability of the magnetic core. High-frequency insertion loss is attributed to interwinding capacitance and series (leakage) inductance. At high temperature it tends to become greater due to increase in the loss component of core permeability.

A further influence on transformer insertion loss is high AC or DC current. Most RF transformers are used in small-signal applications, in which typically up to 100 mW of RF or 20 mA of unbalanced DC current pass through the windings. In the interest of small size and widest bandwidth, the smallest practical size of cores is used. When insertion loss specifications must be met with greater RF power or DC current applied, this must be taken into account in the transformer design to prevent saturation of the magnetic core and consequent bandwidth reduction.

How is insertion loss of a transformer measured? This question is especially pertinent for impedance ratios other than 1:1 because accommodation must be made for the impedance of test instrumentation, which is generally a constant 50 or 75 ohms. There are three methods:

- Three transformers are tested in pairs: A and B, A and C, B and C. Each pair is measured back-to-back; that is, the high-impedance windings are directly connected to one another, and the low-impedance windings face the source and detector of the instrumentation which match the transformer impedance. This results in 3 values of combined insertion loss, so that the values of the 3 unknowns ( the individual A, B, C insertion losses) can be calculated.
- A transformer is measured individually with a minimum-loss pad as a matching circuit connected
between the high-impedance winding and the instrumentation. This has been found practical for
testing 50-ohm to 75-ohm transformers, for which matching pads are readily available. The loss
of the matching circuits (in dB) has to be subtracted from the measured value to yield the
insertion loss of the transformer itself. This method is applicable where only 2 connections are
made to the secondary.
Figure 4 shows the performance of a 50- to 75-ohm transformer, model TC1.5-1, tested by this method. The loss of the matching pad was determined by measuring two of them back-to-back, and dividing the dB-value by 2.

- If the transformer has a center-tapped secondary winding, then it can be connected as a 180 °
power splitter. Each half of the secondary must be terminated by an impedance N
^{2}Z_{1}÷ 2, referring to the equations given for Figure 1c. This requires a matching network to be used between the transformer and the sensing test-port of the insertion loss instrumentation. Because an individual test port sees only one output, both 3 dB for the split and the loss of the matching network must be subtracted from the measured value of insertion loss. By sensing both outputs, amplitude and phase unbalance can also be measured by this method. Element values and loss of the matching network are listed in Table 1.

*Note: because instrumentation requiring proper source termination is connected to one or both
outputs in this method, special design considerations apply to the matching network, and it
should not be a minimum-loss pad. This is discussed in detail in the section entitled
Measurement of Amplitude and Phase Balance of Center-tapped Transformers, where design
criteria, element values, and insertion loss for suitable matching networks are given.*

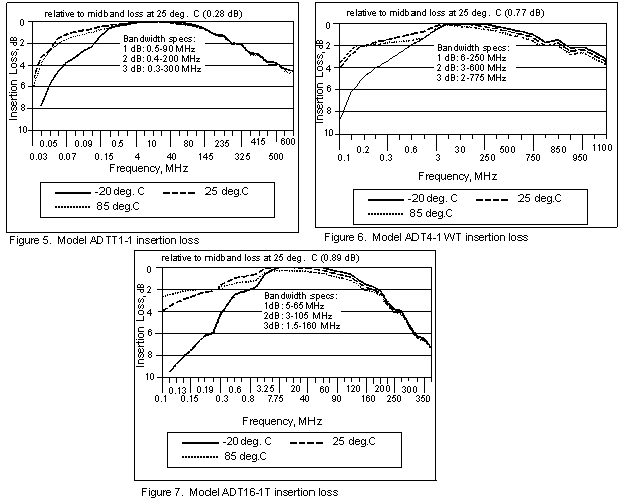

To demonstrate the usefulness of this method for center-tapped transformers having a wide range
of impedance ratios (N^{2} values), insertion loss vs. frequency is shown in Figures 5, 6, and 7 for
the following models:

Fig. No. |
Model |
Impedance ratio, 1:N2 |

5 | ADTT1-1 | 1:1 |

6 | ADT4-1WT | 1:4 |

7 | ADT16-IT | 1:16 |

Actual midband insertion loss is noted above each graph.

**Impedance and Return Loss**

Impedance looking into the secondary winding is measured with the primary winding terminated
in its specified impedance (usually 50 or 75 ohms), and compared with the theoretical
terminating value (Z_{2}, Z_{3}, or Z_{4} in Figure 1).

Return loss , or VSWR, is measured at the primary winding, with the secondary terminated in its
theoretical impedance; e.g., 2×Z_{primary} for a 1:2 impedance-ratio (1:1.414 turns-ratio) transformer.

**Physical Parameters of a Transformer**

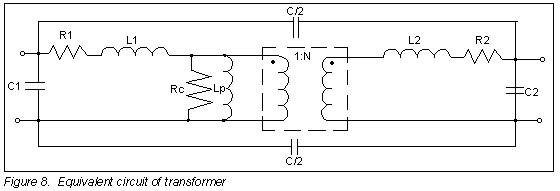

The performance of RF transformers can be understood with the help of the equivalent circuit in Figure 8.

L_{1} and L_{2} are the primary and secondary leakage inductances, caused by incomplete magnetic
coupling between the two windings. Because their reactance is proportional to frequency, these
inductances increase insertion loss and reduce return loss at high frequency.

R_{1} and R_{2} are the resistance, or copper loss, of the primary and secondary windings. Skin effect
increases the resistance at high frequencies, contributing to the increase in insertion loss.

Intra-winding capacitances C_{1} and C_{2}, as well as interwinding capacitance C, also contribute to
performance limitations at high frequency. However, the distinct advantage of the transmission
line design used in RF transformers is that much of the interwinding capacitance is absorbed into
the transmission line parameters together with the leakage inductance (parallel capacitance and
series inductance), resulting in much wider bandwidth than is obtainable with conventional
transformer windings.

L_{p} is the magnetizing inductance, which limits the low frequency performance of the transformer.
It is determined by the permeability and crossectional area of the magnetic core, and by the
number of turns. Insertion loss increases and return loss decreases at low frequency. Further,
permeability of many core materials decreases with a decrease in temperature, and increases above room temperature. This accounts for
the spread of the lower frequency portion of the insertion loss curves in Figure 3 as explained
above.

Temperature variation of the capacitances and the leakage inductances is relatively small. The winding resistances do vary, increasing with temperature, and contribute to the spread of the high frequency portion of the curves in Figure 3.

The resistance R_{c} represents core loss. There are generally three contributions to this loss:

- eddy-current loss, which increases with frequency
- hysteresis loss, which increases with flux density (applied signal level)
- residual loss, due partially to gyromagnetic resonance

We can picture the applied RF signal as causing vibratory motion of the magnetic domains of the
core material, which behave as particles having inertia and friction. The motion therefore causes
a loss of energy. Higher frequency signals cause faster motion, thus greater core loss, and this is
represented by a decrease in the value of R_{c}. At high temperature, random thermal vibration is
greater and adds to the energy which the RF signal must expend to control the movement of the
magnetic domains. Thus, core loss contributes to the increase in insertion loss and decrease in
return loss at high frequency. These effects are accentuated a high temperature as shown in
Figure 3.

**Measurement of Amplitude and Phase Balance: Center-Tapped Transformers**

**Definitions**

Amplitude balance, sometimes called "unbalance", is the absolute value of the difference in
signal amplitude, in dB, between the two outputs of a center-tapped transformer using the center
tap as a ground reference.

Phase balance, sometimes called "unbalance", is the absolute value of the difference in signal phase between the two outputs of a center-tapped transformer using the center tap as a ground reference, after subtracting the 180-degree nominal value of the phase-split.

**Measurement Method: Matching Network Between Each Half of the Transformer Secondary and
Sensing Port in the Test Instrumentation**

It was mentioned above, toward the end of the section on insertion loss measurement, that a
transformer having a center-tapped secondary can be tested like a power splitter. There is a
difference which must be considered, however: A device marketed as a power splitter has an
internal circuit which provides isolation between the outputs; that provision ensures constant
impedance looking into each output port independent of the load on the other output. A
transformer on the other hand, being a simpler device, lacks isolation. Thus, the design of the
matching network must take into account not only the primary source impedance transformed
by the primary-to-half-secondary ratio, but another impedance in parallel with it: the input
impedance of whatever is terminating the other half-secondary winding.

The situation is illustrated in Figure 9. R_{t} is the source and sensing port impedance of the test
instrumentation, as well as the impedance for which the primary of the transformer is designed.
The total secondary must be terminated in N^{2} R_{t}. Therefore, each of the matching networks,
while its output is terminated in R_{t}, must have an output impedance N^{2} R_{t} ÷ 2.

The output source impedance of each matching network, because it has to feed a cable presenting
a load R_{t }, must also equal R_{t}. This must be while the matching network is being fed from a
source impedance which is the parallel combination of two impedances as follows: One is the
transformed source impedance R_{t} which appears at the half-secondary as (N ÷ 2)^{2} R_{t}. The other is
the input of the other matching network, N^{2} R_{t} ÷ 2, coupled from one half-secondary to the other.
The resultant is N^{2} R_{t} ÷ 6.

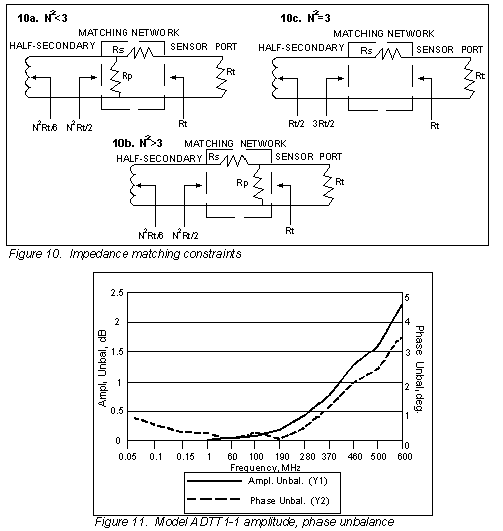

The impedance constraints for the matching network require three topologies depending upon the
value of the transformer impedance ratio N^{2}, as shown in Figures 10a through 10c.

For each of the two non-trivial cases, 10a and 10c, the requirements for input and output
impedance to the network provide two equations to solve for the two unknowns R_{s} and R_{p}.

For N^{2} < 3, referring to Figure 10a, the equations are:

and

This solution is :

For N^{2} > 3, referring to Figure 10c, the equations are:

and

The solution is

For N^{2} = 3, R_{s} = R_{t} ÷ 2 and R_{p} is infinite.

For accurate RF phase balance measurement, the construction of the matching networks and the connections to them should be such as to provide electrical symmetry between the two halves of the circuit.

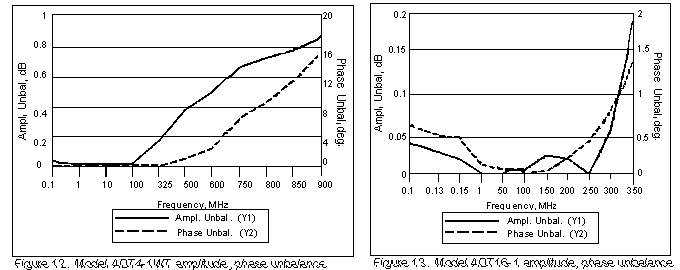

To show the effectiveness of the above method, it was used to test transformers for amplitude and phase unbalance, with results shown in Figures 11, 12, and 13. These are the same transformers for which insertion loss was given in Figures 5, 6, and 7.

The remaining task is to derive expressions for the insertion loss of the matching network, so that
is can be subtracted from measured values to yield insertion loss for the center-tapped
transformer itself when it is tested by the "power splitter" method described above. As a
reminder, 3 dB (for the split) must also be subtracted from the measured values.

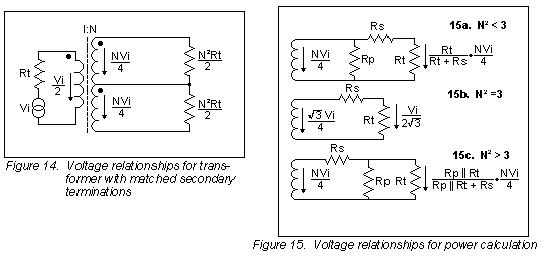

Figure 14 shows voltage relationships for a transformer with the secondary terminated in matched resistive impedances.

The voltage across the primary is half the open-circuit source voltage V_{i}, because the impedance
looking into the primary is R_{t}. The power delivered to each terminating resistor is the square of
the voltage divided by the resistance:

Figure 15 shows what happens when the various matching networks are inserted after the half-secondary, and the matched load per Figure 10 is replaced by R_{t} which represents the sensor port
in the instrumentation.

Figure 15a includes the "N_{2} < 3" matching network of Figure 10a. The power delivered to the
load R_{t} is P_{OL} (the subscript L designates the low N^{2} case):

Figure 15b illustrates the N^{2} = 3 case per Figure 10b:

Figure 15c is for N^{2} > 3, corresponding to Figure 10c (the subscript H in P_{OH} designates the high
N^{2} case):

Table 1 lists the matching-network resistance values, normalized to R_{t}, as well as the network
loss in dB, for values of impedance ratio for which Mini-Circuits offers center-tapped RF
transformers.

Resistors available for the matching networks are typically the "1% values". Their nominal
values, having increments of 2%, could thus differ from the Table 1 values of R_{s} and R_{p} by as
much as ±1%. The resulting error in the loss of the network is greatest if R_{s} and R_{p} depart form
Table 1 in opposite direction, and amounts to 0.1 dB for N^{2} = 5, for example, in the case of 1%
resistance error. If greater accuracy is needed, loss should be calculated by substituting the actual
resistances in the equations following Figure 15.

The above discussion about resistor precision pertains to measurement of insertion loss of a transformer; amplitude balance is not affected by resistance error as long as the two matching networks are equal.

**Table 1. Matching Networks for Testing Center-tapped Transformers**

Z ratio, 1: N^{2} |
R_{s} (Figure 10) |
R_{p} (Figure 10) |
Loss of Network, dB |

1:1 | 0.866 R_{t} |
0.683 R_{t} |
8.43 |

1:1.5 | 0.791 R_{t} |
1.291 R_{t} |
6.31 |

1:2 | 0.707 R_{t} |
2.414 R_{t} |
4.64 |

1:2.5 | 0.612 R_{t} |
5.56 R_{t} |
3.18 |

1:3 | 0.500 R_{t} |
None | 1.76 |

1:4 | 1.333 R_{t} |
2.000 R_{t} |
6.53 |

1:5 | 1.887 R_{t} |
1.581 R_{t} |
8.23 |

1:8 | 3.44 R_{t} |
1.265 R_{t} |
11.08 |

1:13 | 5.97 R_{t} |
1.140 R_{t} |
13.60 |

1:16 | 7.47 R_{t} |
1.109 R_{t} |
14.61 |

1:25 | 11.98 R_{t} |
1.066 R_{t} |
16.71 |
