Solar Panel Charge Controller / Low Voltage Disconnect Circuit (SCC1)
These circuits appeared as a pair of articles in
Home Power
Magazine. The charge controller is used to connect a solar panel to a 12 volt
lead acid battery, it regulates
the charging of the battery and allows the battery to be charged
up to a preset voltage. This prevents the
battery from over-charging and boiling off electrolyte.
The low voltage disconnect is used to connect a load to the same 12 volt
lead acid battery, the LVD acts as a smart switch, it auto disconnects
the load if the battery voltage falls below a set point.
When used together, these circuits keep the battery operating within normal
voltage limits which greatly extends the life of the battery.

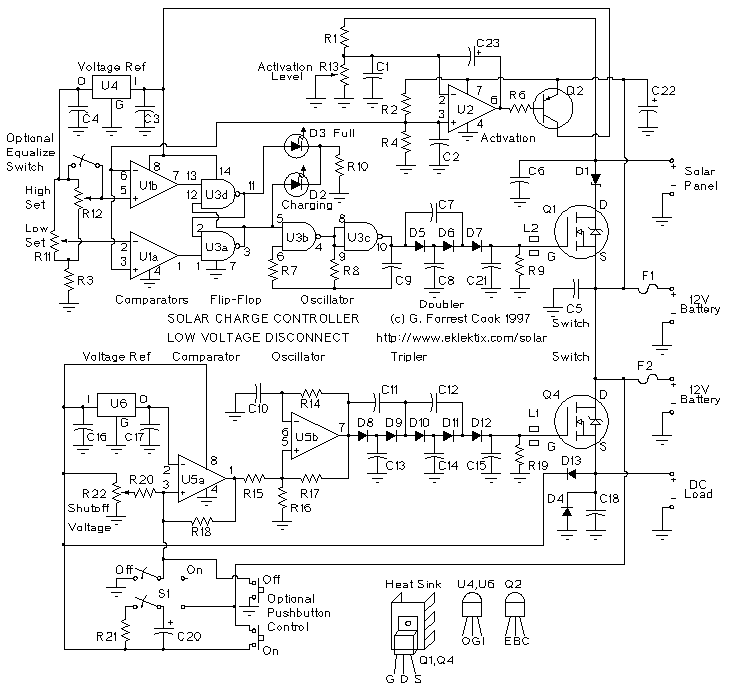

Charge Controller / Low Voltage Disconnect circuit in GIF format
(17kb)
Charge Controller / Low Voltage Disconnect circuit in PostScript format
(30kb)
Charge Controller article
Low Voltage Disconnect article
Circuit Board Assembly Instructions and Parts List
Circuit Alignment Instructions
This circuit is no longer offered as a kit, thanks to the
many customers who bought this version.
Solar Charge Controller Kits For Sale
A new charge controller only kit is available on the
CirKits
web page.
The SCC2 charge controller is much easier to align than the SCC1,
with only one adjustment instead of three.
