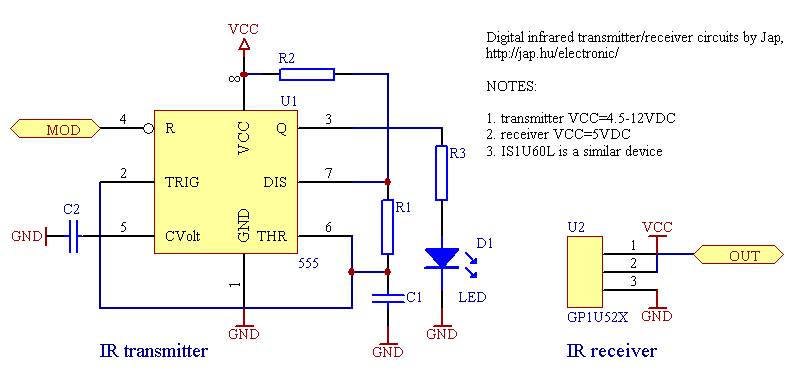

Jap's electronic projects Jap's electronic projectsInfrared remote controls are using a 32-40 kHz modulated square wave for communication. These circuits are used to transmit a 1-3 kHz digital signal through infra light. The transmitter oscillator which is driving the infrared transmitter LED can be turned on/off by applying a TTL voltage on the MOD input. On the receiver side a photodiode takes up the signal. The integrated circuit inside the chip is sensitive only around a specific frequency in the 32-40 kHz range. The output is the demodulated digital input, just what we used to drive the transmitter. When the carrier is present, this output is high. When no carrier is detected, the output is low.
Stefan Ovidiu writes that if you'd need a low power device, replace the NE555 IC with an ICM7555 (the CMOS equivalent of 555) or use a quad NAND CD4011 to build a gated oscillator.
Here is a sample list of receiver chips.
| device | manufacturer | pinout | notes |

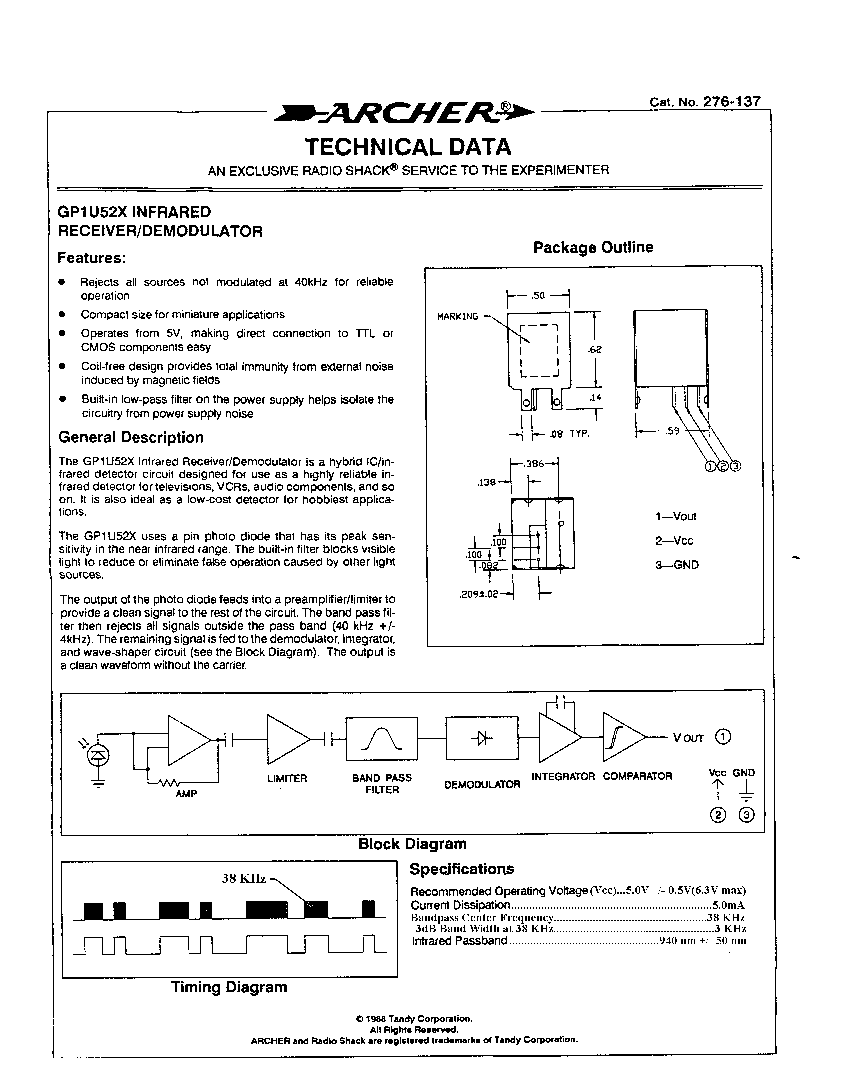

| GP1U52X | Sharp | 1=OUT 2=VCC (+5VDC) 3=GND |
38 kHz |
| IS1U60L | Sharp | 1=VOUT 2=GND 3=VCC (+5VDC) |
60 kHz output is inverted (LOW when carrier present) |
| TSOP17xx | Vishay | 1=GND 2=VCC (+5VDC) 3=OUT |
30, 33, 36, 36.7, 38, 40, 56 kHz output is inverted (LOW when carrier present) |
| TSOP18xx | Vishay | 1=OUT 2=GND 3=VCC (+5VDC) |
30, 33, 36, 36.7, 38, 40, 56 kHz output is inverted (LOW when carrier present) |
For a remote control application of these circuits, please check my encoder/decoder circuit.
| name | value |
| R1 | 1k |
| R2 | 15-22k use a 15k resistor series with a 10k potmeter to adjust frequency in the 32-40kHz range |
| R3 | 15 @5VDC, 200 mA peak 35 @9VDC, 200 mA peak 50 @12VDC, 200 mA peak |
| C1 | 1n |
| C2 | 47n |
an older IR receiver design of mine is available, but it is only for detecting, not decoding a modulated IR signal.
